7 Markov-modulated (marked) Poisson processes

Jan-Ole Fischer

MMMPPs.Rmd

Before diving into this vignette, we recommend reading the vignettes Introduction to LaMa, Automatic differentiation via RTMB, and Continuous-time HMMs.

library(LaMa)
#> Loading required package: RTMB

In a continuous-time HMM, observation values carry information about the latent state while the observation times are treated as fixed or uninformative (the snapshot property). The Markov-modulated Poisson process (MMPP) reverses this: the arrival times themselves are the observations, and their spacing carries information about the hidden state process.

The key idea is that an unobserved continuous-time Markov chain (CTMC) modulates the rate of a Poisson process. While the chain stays in state j, events arrive at a constant, state-specific rate \lambda_j. A high-rate state produces rapid bursts of closely spaced arrivals; a low-rate state produces sparse events. By fitting the model to the observed arrival times alone, we can infer both the Poisson rates and the dynamics of the hidden CTMC (described by its generator matrix Q, as in the continuous-time HMM vignette).

A natural extension, the Markov-modulated marked Poisson process (MMMPP), additionally associates a random mark y_i with each arrival. Marks are drawn from a state-dependent distribution at the moment of arrival, providing a second source of information about the latent state alongside the timing. For more background see Meier-Hellstern (1987) and Langrock et al. (2013).

Likelihood

MMPP

For n arrivals at times t_1 < \dots < t_n, let \Delta t_i = t_{i+1} - t_i be the inter-arrival waiting times and \Lambda = \text{diag}(\lambda_1, \dots, \lambda_N) the diagonal matrix of state-dependent rates. The likelihood of a stationary MMPP is

L(\theta) = \pi \Bigl(\prod_{i=1}^{n-1} \exp\bigl((Q - \Lambda)\,\Delta t_i\bigr)\,\Lambda\Bigr)\,\mathbf{1}^\top,

where \pi is the stationary distribution of the CTMC and \mathbf{1} is a column vector of ones. The matrix \exp((Q - \Lambda)\,\Delta t_i) propagates the state distribution through gap \Delta t_i while accounting for the fact that no event occurred during this interval; \Lambda then contributes the instantaneous rate of the event that does occur at the end of the gap.

This has exactly the same structure as the regular HMM likelihood, so forward() applies directly. We construct the allprobs matrix with n rows: the first row is all ones (pure initialisation with \pi, no density contribution), and rows 2, \dots, n all equal (\lambda_1, \dots, \lambda_N) — the instantaneous arrival-rate density at each observed event.

MMMPP

When each arrival i also carries a mark y_i, the likelihood gains one additional factor per event:

L(\theta) = \pi\,P(y_1) \Bigl(\prod_{i=1}^{n-1} \exp\bigl((Q - \Lambda)\,\Delta t_i\bigr)\,\Lambda\,P(y_{i+1})\Bigr)\,\mathbf{1}^\top,

where P(y_i) is a diagonal matrix of state-dependent densities evaluated at mark y_i. In practice we fold \Lambda into the allprobs matrix: after filling in the mark densities for all n rows, rows 2, \dots, n are multiplied element-wise by (\lambda_1, \dots, \lambda_N), so the same forward() call handles everything.

Example 1: Markov-modulated Poisson processes

Setting parameters

We use a 2-state model. State 2 has a much higher arrival rate and shorter mean sojourn time — it is the bursty state.

lambda = c(2, 15)  # state-dependent Poisson rates
Q = matrix(c(-0.5, 0.5,
              2.0, -2.0), nrow = 2, byrow = TRUE)

The mean sojourn time in state 1 is 1/0.5 = 2 time units; in state 2 it is 1/2 = 0.5 time units.

Simulating an MMPP

The simulation mirrors the CTMC simulation from the continuous-time HMM vignette. The only difference is that instead of drawing observation values during each sojourn, we draw Poisson arrival times. Within each sojourn of length dwell, the number of arrivals is Poisson with mean lambda * dwell, and their positions are uniform over the sojourn interval.

set.seed(123)

k = 200              # number of state switches to simulate
s = rep(NA, k)       # latent state sequence
trans_times = rep(NA, k)  # cumulative transition times

# initialise
s[1] = sample(1:2, 1)
dwell = rexp(1, -Q[s[1], s[1]])
trans_times[1] = dwell

n_arrivals = rpois(1, lambda[s[1]] * dwell)
arrival_times = sort(runif(n_arrivals, 0, dwell))

for (t in 2:k) {
  # 2-state chain: always switches to the other state
  s[t] = 3 - s[t-1]

  dwell = rexp(1, -Q[s[t], s[t]])
  trans_times[t] = trans_times[t-1] + dwell

  t_start = trans_times[t-1]
  t_end   = trans_times[t]

  # Poisson arrivals uniformly distributed within sojourn
  n_arrivals = rpois(1, lambda[s[t]] * dwell)
  arrival_times = c(arrival_times, sort(runif(n_arrivals, t_start, t_end)))
}

The cumulative arrivals plot is the clearest way to see how the Poisson rate changes with the hidden state: the slope of the curve equals the current arrival rate, so steep segments correspond to the bursty state and shallow segments to the slow state.

color = LaMaColors(2)
n = length(arrival_times)
plot(c(0, arrival_times), 0:n, type = "l", bty = "n",
     xlab = "time", ylab = "cumulative arrivals",
     ylim = c(-n * 0.05, n))
segments(x0 = c(0, trans_times[-k]), x1 = trans_times,
         y0 = rep(-n * 0.05, k), y1 = rep(-n * 0.05, k),
         col = color[s], lwd = 4)
legend("topleft", lwd = 2, col = color, legend = paste("state", 1:2), box.lwd = 0)

Writing the negative log-likelihood function

The allprobs matrix has length(timediff) + 1 rows (one per arrival, plus one for initialisation). Row 1 is all ones; the remaining rows carry the state-dependent rates \lambda_j. The transition matrices are computed via tpm_ct(Q, timediff, lambda), where the optional lambda argument internally subtracts \Lambda from Q before the matrix exponential — simultaneously propagating the state distribution and accounting for the absence of arrivals during each gap.

nll = function(par) {
  getAll(par, dat)
  lambda = exp(log_lambda); REPORT(lambda)
  Q = generator(log_qs); REPORT(Q)
  Pi = stationary_ct(Q); REPORT(Pi)
  Qube = tpm_ct(Q, timediff, lambda)
  allprobs = matrix(rep(lambda, length(timediff) + 1),
                    nrow = length(timediff) + 1, ncol = N, byrow = TRUE)
  allprobs[1,] = 1
  -forward(Pi, Qube, allprobs)
}

Fitting the model

N = 2
timediff = diff(arrival_times)

par = list(
  log_lambda = log(c(2, 15)),
  log_qs     = log(c(2, 0.5))
)
dat = list(
  timediff = timediff,
  N = N
)

obj = MakeADFun(nll, par, silent = TRUE)
system.time(
  opt <- nlminb(obj$par, obj$fn, obj$gr)
)
#>    user  system elapsed
#>   0.335   0.000   0.335
mod = report(obj)

Results

mod$lambda           # true: 2, 15
#> [1]  1.950361 15.056559
round(mod$Q, 3)      # true: Q as defined above
#>        S1     S2
#> S1 -0.399  0.399
#> S2  1.883 -1.883
round(1 / diag(-mod$Q), 2)  # mean dwell times; true: 2, 0.5
#>   S1   S2
#> 2.51 0.53
mod$Pi               # stationary distribution of the CTMC
#>        S1        S2
#> 0.8251464 0.1748536

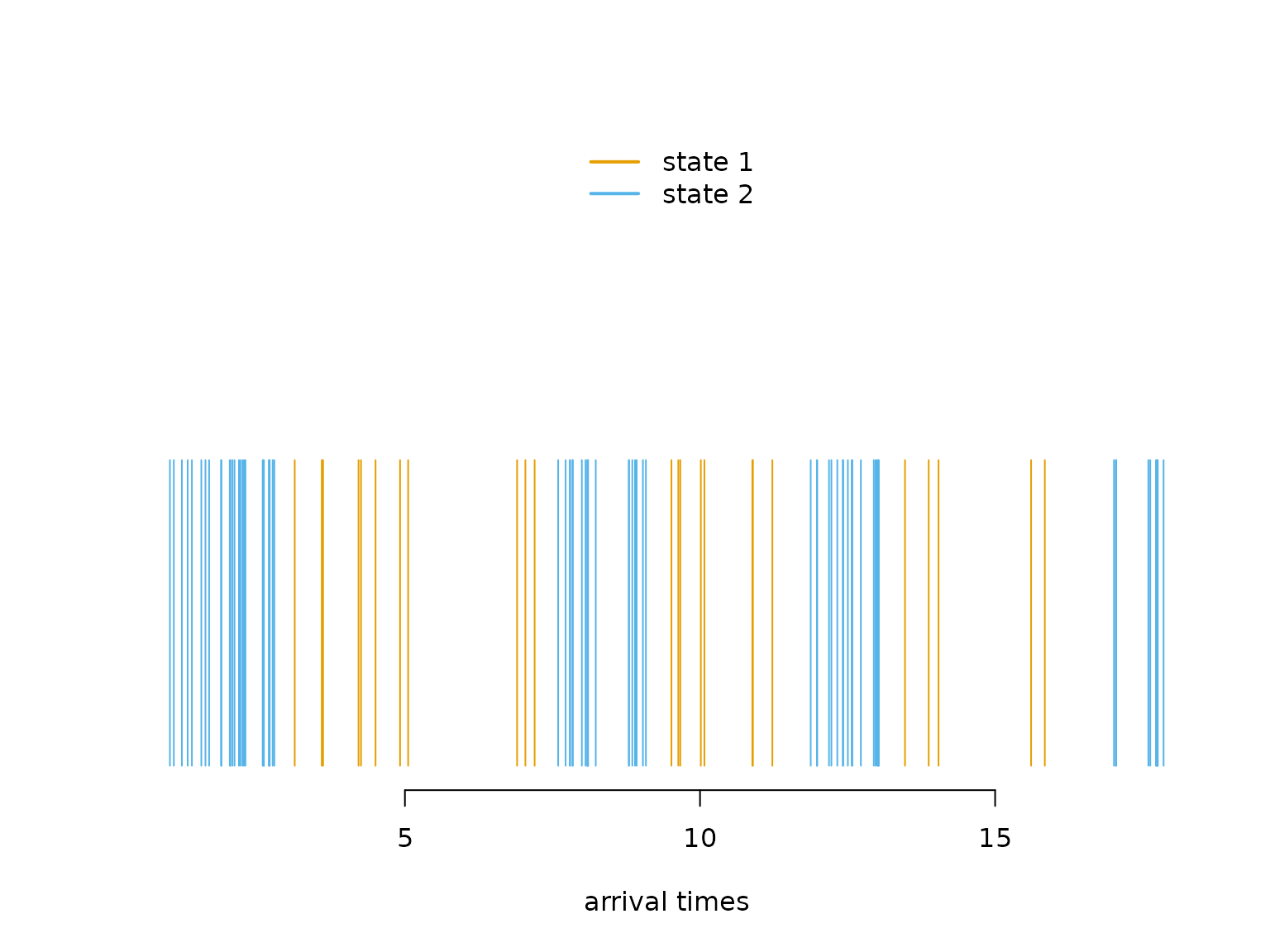

We can decode the most probable state sequence with viterbi() and colour each arrival by its inferred state.

states = viterbi(mod = mod)

plot(arrival_times[1:100], rep(0.5, 100), type = "h", bty = "n",
     ylim = c(0, 1), yaxt = "n", col = color[states[1:100]],
     xlab = "arrival times", ylab = "")
legend("top", lwd = 2, col = color, legend = paste("state", 1:N), box.lwd = 0)

Example 2: Markov-modulated marked Poisson processes

Adding marks to each arrival provides a second channel of information about the latent state. Here we use three states with well-separated mark distributions so the model is clearly identifiable.

Setting parameters

lambda = c(1, 5, 20)
Q = matrix(c(-0.5, 0.3, 0.2,
              0.7, -1.0, 0.3,
              1.0,  1.0, -2.0), nrow = 3, byrow = TRUE)
mu    = c(-5, 0, 5)
sigma = c(2, 1, 2)

color = LaMaColors(3)

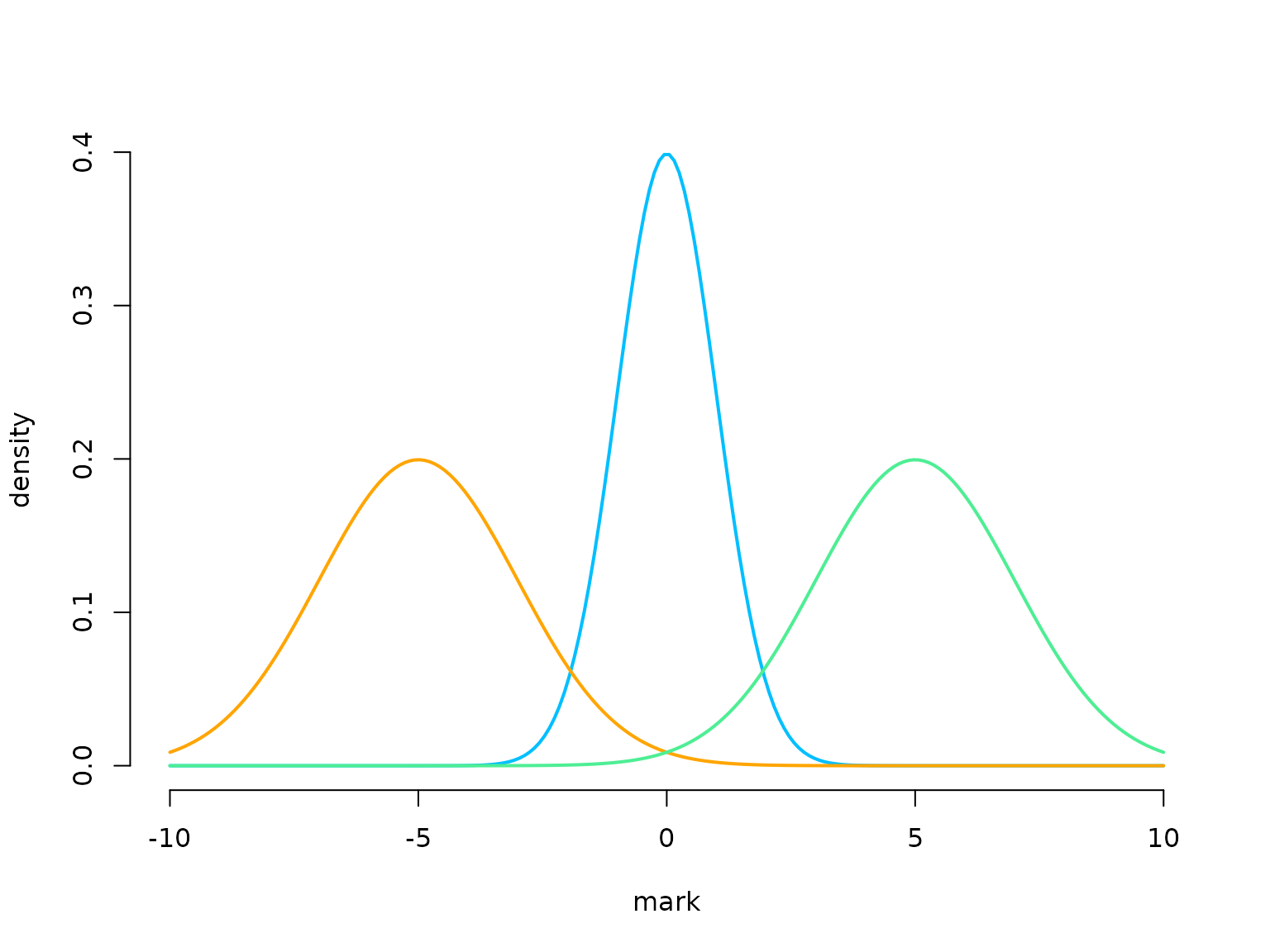

curve(dnorm(x, mu[2], sigma[2]), xlim = c(-10, 10), bty = "n",
      lwd = 2, col = color[2], n = 200, ylab = "density", xlab = "mark")
curve(dnorm(x, mu[1], sigma[1]), add = TRUE, lwd = 2, col = color[1], n = 200)
curve(dnorm(x, mu[3], sigma[3]), add = TRUE, lwd = 2, col = color[3], n = 200)
legend("topright", lwd = 2, col = color, bty = "n", legend = paste("state", 1:3))

Simulating an MMMPP

For three states, the conditional next-state probabilities after leaving state i are \omega_{ij} = q_{ij}/(-q_{ii}). Marks are drawn independently from the state-dependent distribution at each arrival, in the same order as the arrival times.

set.seed(123)

k = 200
s = rep(NA, k)
trans_times = rep(NA, k)

s[1] = sample(1:3, 1)
dwell = rexp(1, -Q[s[1], s[1]])
trans_times[1] = dwell

n_arrivals = rpois(1, lambda[s[1]] * dwell)
new_arrivals = sort(runif(n_arrivals, 0, dwell))
arrival_times = new_arrivals
marks = rnorm(n_arrivals, mu[s[1]], sigma[s[1]])

for (t in 2:k) {
  # conditional next-state probabilities: omega_ij = q_ij / (-q_ii)
  omega = Q[s[t-1], -s[t-1]] / -Q[s[t-1], s[t-1]]
  s[t] = sample((1:3)[-s[t-1]], 1, prob = omega)

  dwell = rexp(1, -Q[s[t], s[t]])
  trans_times[t] = trans_times[t-1] + dwell

  t_start = trans_times[t-1]
  t_end   = trans_times[t]

  n_arrivals = rpois(1, lambda[s[t]] * dwell)
  new_arrivals = sort(runif(n_arrivals, t_start, t_end))
  arrival_times = c(arrival_times, new_arrivals)
  marks = c(marks, rnorm(n_arrivals, mu[s[t]], sigma[s[t]]))
}
n = length(arrival_times)

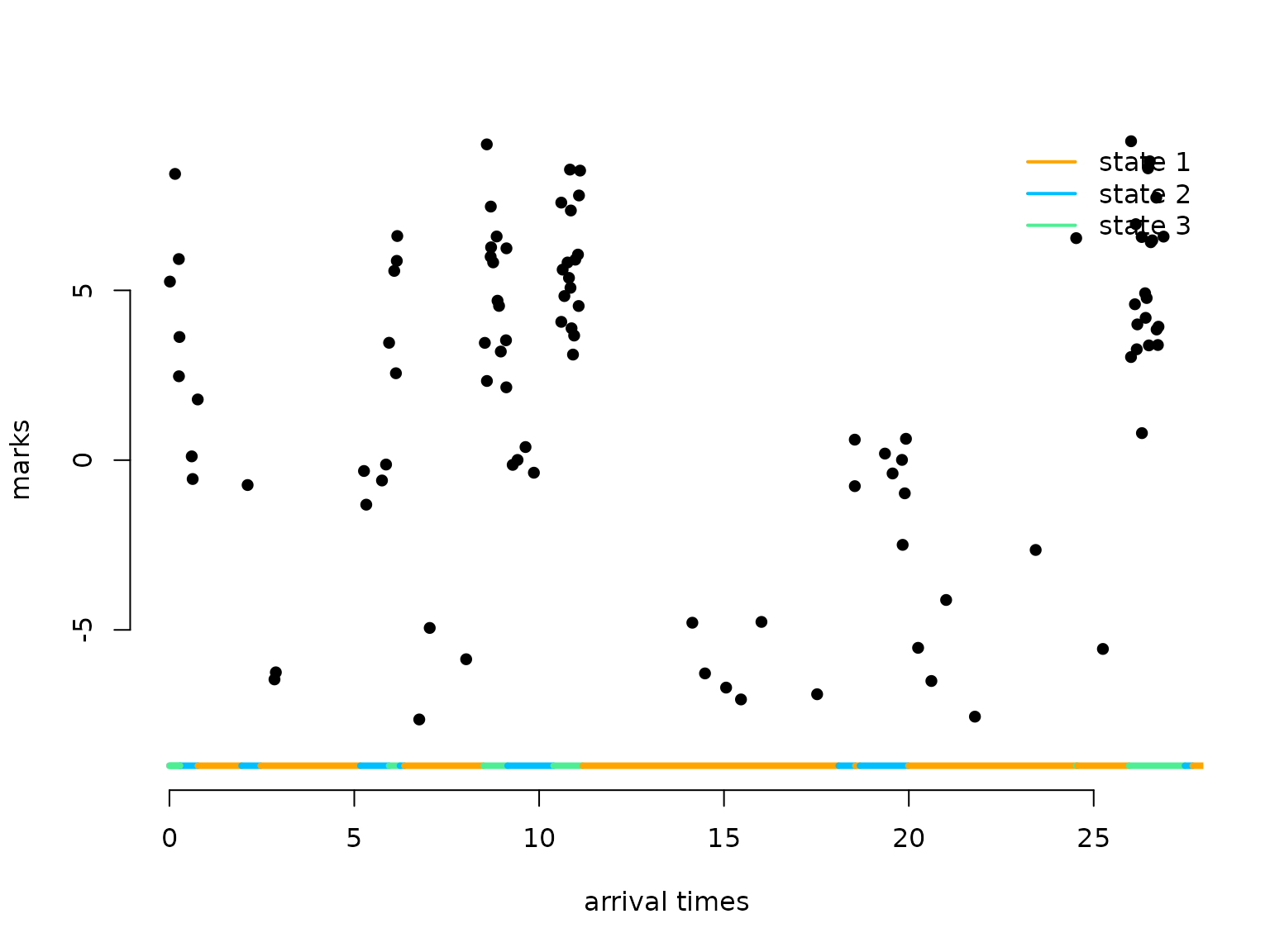

plot(arrival_times[1:100], marks[1:100], pch = 16, bty = "n",
     ylim = c(-9, 9), xlab = "arrival times", ylab = "marks")
segments(x0 = c(0, trans_times[1:98]), x1 = trans_times[1:99],
         y0 = rep(-9, 99), y1 = rep(-9, 99), col = color[s[1:99]], lwd = 4)
legend("topright", lwd = 2, col = color,
       legend = paste("state", 1:3), box.lwd = 0)

Writing the negative log-likelihood function

The allprobs matrix is built from the mark densities for all n arrivals. Rows 2, \dots, n are then multiplied element-wise by the state-dependent rates (\lambda_1, \dots, \lambda_N) to fold in the Poisson arrival contribution, giving the combined MMMPP likelihood.

nll2 = function(par) {
  getAll(par, dat)
  lambda = exp(log_lambda); REPORT(lambda)
  REPORT(mu)
  sigma = exp(log_sigma); REPORT(sigma)
  Q = generator(log_qs); REPORT(Q)
  Pi = stationary_ct(Q); REPORT(Pi)
  Qube = tpm_ct(Q, timediff, lambda)
  allprobs = matrix(1, length(marks), N)
  for (j in 1:N) allprobs[, j] = dnorm(marks, mu[j], sigma[j])
  # multiply rows 2:n by lambda to fold in the arrival-rate contribution
  allprobs[-1,] = allprobs[-1,] * matrix(lambda, length(marks) - 1, N, byrow = TRUE)
  -forward(Pi, Qube, allprobs)
}

Fitting the model

N = 3
timediff = diff(arrival_times)

par = list(
  log_lambda = log(c(1, 5, 20)),
  mu         = c(-5, 0, 5),
  log_sigma  = log(c(2, 1, 2)),
  log_qs     = log(c(0.7, 1, 0.3, 1, 0.2, 0.3))
)
dat = list(
  marks    = marks,
  timediff = timediff,
  N = N
)

obj2 = MakeADFun(nll2, par, silent = TRUE)
system.time(
  opt2 <- nlminb(obj2$par, obj2$fn, obj2$gr)
)
#>    user  system elapsed
#>   0.992   0.000   0.991
mod2 = report(obj2)

Results

mod2$lambda                  # true: 1, 5, 20
#> [1]  0.9646738  4.8641071 19.5009530
mod2$mu                      # true: -5, 0, 5
#> [1] -5.18540494 -0.09096836  4.80540113
mod2$sigma                   # true: 2, 1, 2
#> [1] 1.7931070 0.9644496 2.0093249
round(mod2$Q, 3)             # true: Q as defined above
#>        S1     S2     S3
#> S1 -0.591  0.279  0.312
#> S2  0.926 -1.180  0.254
#> S3  1.193  1.210 -2.403
round(1 / diag(-mod2$Q), 2) # mean dwell times; true: 2, 1, 0.5
#>   S1   S2   S3
#> 1.69 0.85 0.42
mod2$Pi                      # stationary distribution
#>        S1        S2        S3
#> 0.6297018 0.2609501 0.1093482

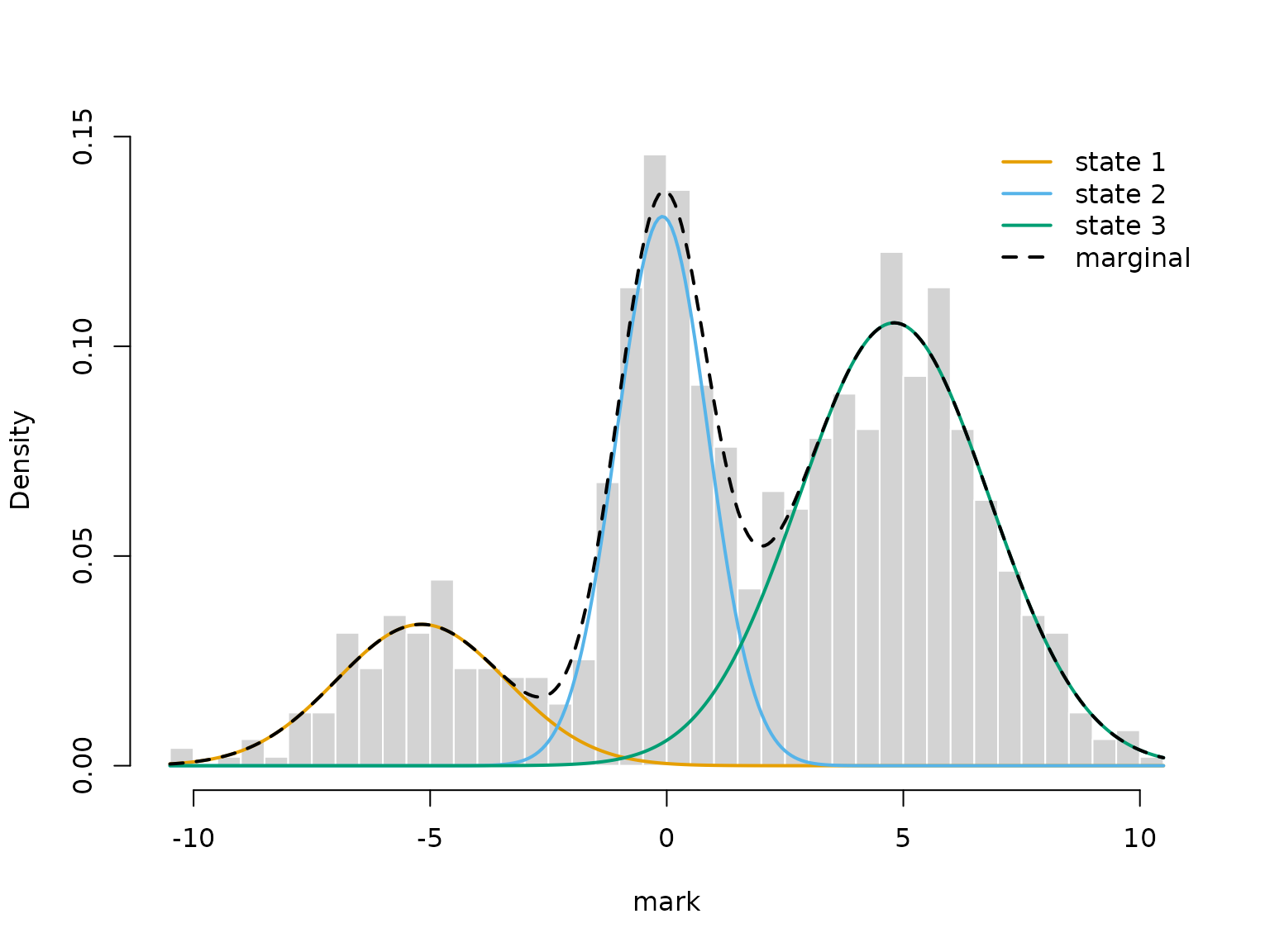

Overlaying the fitted state-dependent densities on a histogram of all marks provides an intuitive model check. Note that the mixture weights are not the stationary distribution \pi_j (proportion of time in state j) but the rate-weighted proportions w_j \propto \pi_j \lambda_j — states with higher arrival rates contribute disproportionately more marks.

# marks arrive at rate lambda_j in state j, so the fraction of marks from
# state j is proportional to Pi[j] * lambda[j], not Pi[j] alone
w = mod2$Pi * mod2$lambda / sum(mod2$Pi * mod2$lambda)

hist(marks, prob = TRUE, breaks = 50, border = "white", main = "",
     xlab = "mark")
for (j in 1:N) {
  curve(w[j] * dnorm(x, mod2$mu[j], mod2$sigma[j]),
        add = TRUE, lwd = 2, col = color[j], n = 300)
}
curve(rowSums(sapply(1:N, function(j) w[j] * dnorm(x, mod2$mu[j], mod2$sigma[j]))),
      add = TRUE, lwd = 2, lty = 2, n = 300)
legend("topright", lwd = 2, lty = c(1, 1, 1, 2), bty = "n",
       col = c(color, "black"), legend = c(paste("state", 1:N), "marginal"))

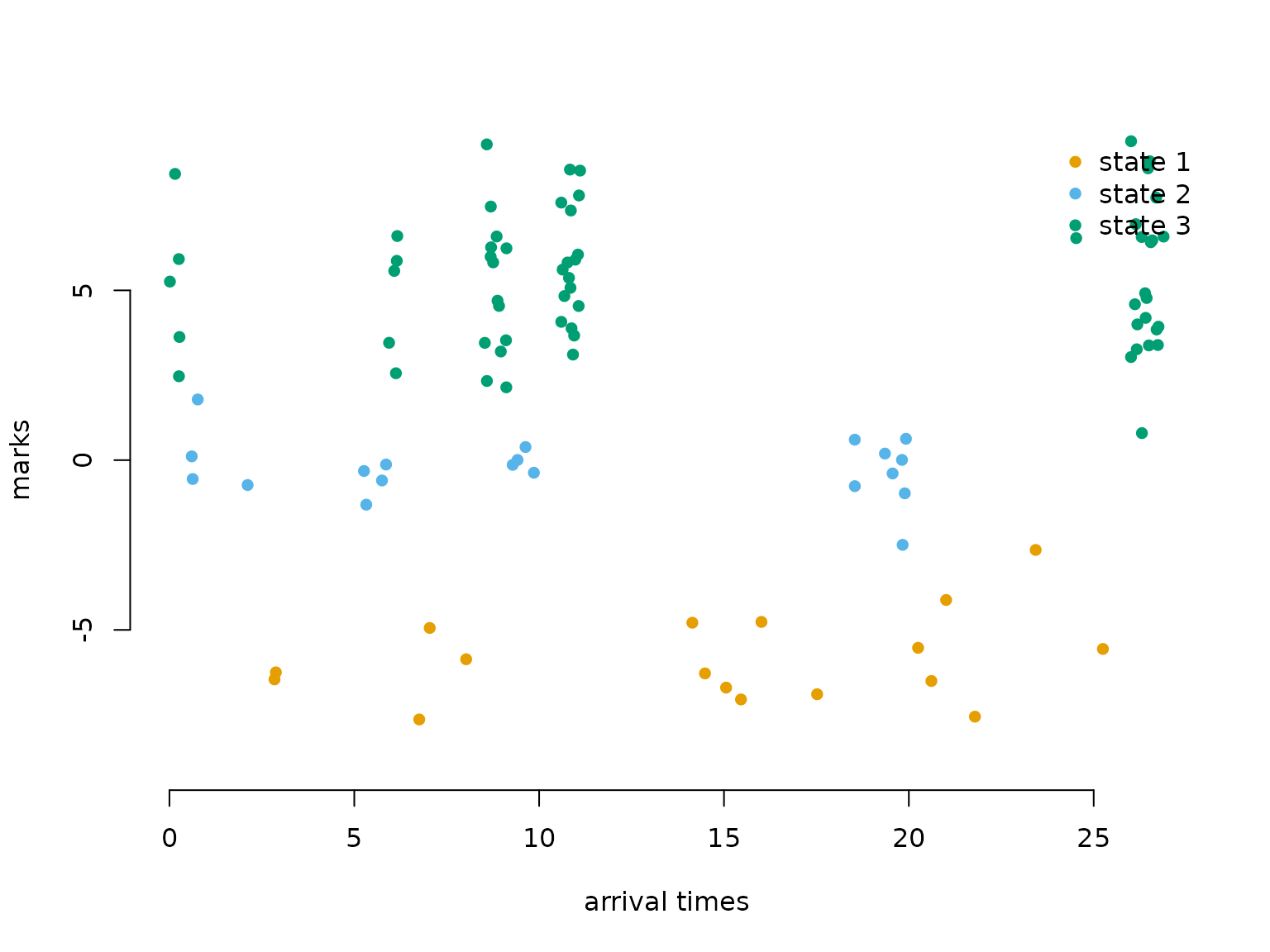

State decoding via viterbi() now colours each mark by its inferred state — combining both timing and mark information to assign the latent state.

states2 = viterbi(mod = mod2)

plot(arrival_times[1:100], marks[1:100], pch = 16, bty = "n",
     col = color[states2[1:100]],
     ylim = c(-9, 9), xlab = "arrival times", ylab = "marks")
legend("topright", pch = 16, col = color,
       legend = paste("state", 1:3), box.lwd = 0)

References

Langrock, Roland, David L Borchers, and Hans J Skaug. 2013. “Markov-Modulated Nonhomogeneous Poisson Processes for Modeling Detections in Surveys of Marine Mammal Abundance.” Journal of the American Statistical Association 108 (503): 840–51.
Meier-Hellstern, Kathleen S. 1987. “A Fitting Algorithm for Markov-Modulated Poisson Processes Having Two Arrival Rates.” European Journal of Operational Research 29 (3): 370–77.
